价 格
订货量
￥9.90
价格为商家提供的参考价，请通过"获取最低报价"
获得您最满意的心理价位~
≥10
| 产品特性：兼容瞻博 | 加工定制：是 | 品牌：九州互联 |
| 型号：10G-SFP-BIDI-40KM | 工作波长范围：1310nm | 偏振相关增益：6dB |
| 工作温度：0 ~ 70℃ | 储存温度：-40 ~ 80℃ | 距离：10km |
| 速率：10g | 封装：SFP+ | 电压：3.3V |
| 功率：1W |
九州互联供应400G/200G/50G PAM系列光模块，100G QSFP28/CFP4/CFP2/CFP系列光模块、40G QSFP+系列光模块、25G SFP28系列光模块、10G SFP+/XFP/X2/XENPAK系列光模块、 SFP系列光模块以及AOC/DAC全系列线缆等产品,欢迎咨询！

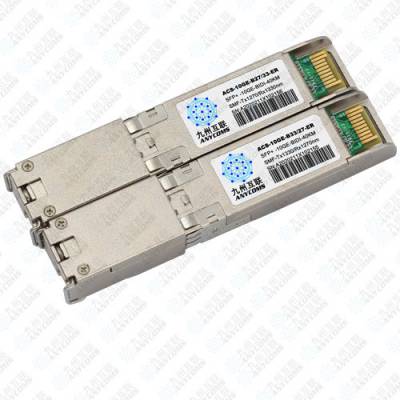

10Gb/s SFP+ BIDI 40KM Optical Transceiver Module
ACS-10GE-B2733-ER/ACS-10GE-B3327-ER
Features
l Up to 11.1Gb/s data rate
l 1270nm DFB laser and PIN receiver for ACS-10GE-B2733-ER
l 1330nm DFB laser and PIN receiver for ACS-10GE-B3327-ER
l 2-wire interface with integrated Digital Diagnostic monitoring
l Up to 40km transmission on SMF
l BIDI LC optical connector
l Single +3.3V power supply
l Metal enclosure, for lower EMI
l Maximum power consumption 1.5W
l RoHS-6 compliant and lead-free
l SFF-8472 MSA compliant &SFF-8431
l Operating case temperature
Commercial: 0 ~ 70oC
Applications
l 10GBASE-ER/EW & 10G Ethernet
l SDH STM64
l Other Optical Links/Back to Back
Optical Characteristics
The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.
Symbol | Typical | Unit | Transmitter | |||
λC | 1270 | nm | ||||
1330 | nm | |||||
?1 | Average Optical Power | 0 | dBm | |||
ER | dB | |||||
Average Launched Power(Laser Off) | Poff | -30 | dBm | |||
Compliant with IEEE802.3ae |
