价 格
订货量
面议
价格为商家提供的参考价，请通过"获取最低报价"
获得您最满意的心理价位~
不限
| 产品特性：热销品 | 加工定制：是 | 品牌：九州互联 |
| 型号：100G-QSFP28-BIDI-LR | 工作波长范围：1310nm | 偏振相关增益：4dB |
| 工作温度：0-70℃ | 储存温度：-40-80℃ |

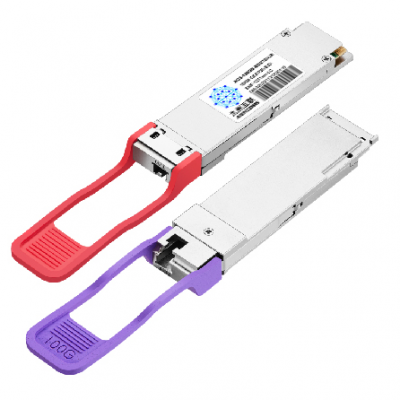

100Gb/s QSFP28 PAM4 LRB BIDI-1331nm/1271nm, EML+PIN, Single mode Optical Transceiver
ACS-100GB-BD3327-LRB
Features
l QSFP28 MSA package with simplex LC connector
l Compliant to 100G Lamda MSA 100G-LR1 Optical Specifications
l
Interoperable with IEEE 802.3cu
l Lane signaling rate 53.125GBd with PAM4
l High speed I/O electrical interface
l Two Wire Serial Interface with Digital Diagnostic Monitoring
l Operating case temperature range 0掳C to +70掳C
l Support KP4 FEC inside the module and KP4 FEC shutdown
l Reaches up to 10km on SMF
l Maximum power consumption 4.5W
l 3.3V power supply voltage
l compliant to RoHS2.0
l Class 1 Laser
Applications
l Data Center
l Ethernet switches and router applications
l 100 Gigabit Ethernet
Absolute Maximum Ratings
It has to be noted that the operation in excess of any individual absolute maximum ratings might cause permanent damage to this module.
Parameter | Symbol | Conditions | Min | Max | Unit |
Storage temperature锛坈ase锛� | Tstg | -40 | +85 | 鈩� | |
Relative Humidity | RH | Non- condensing | 5 | 85 | % |
Supply voltage | VCC | 0 | 3.6 | V | |
Low speed signal voltage range | -0.3 | 4.0 | V | ||
Damage threshold | Pin | Average | 5.5 | dBm | |
ESD Sensitivity | 卤500V for RF 卤2kVfor others | V |
